Careful to preserve the know-how of design and construction of its presses and to promote that circular economy, which goes around the metal engineering field (raw materials, spare parts, energy consumption), J&C TECHNOLOGY agrees, if requested by the customer, the repurchase of its used presses, thanks to a regular after-sales relationship and its service of spare parts supply and maintenance.
Originally built for mass production of ceramic mosaic and special pieces, thanks to our technical and mechanical staff, are renewed and quickly reintroduced on the market thanks to their excellent quality/price ratio, meeting their original purpose or "transformed" on request.
Actions on power/tonnage and productivity can be carried by a preliminary study in collaboration with our technical staff out.
The following models of UNIAXIAL presses are currently available:
| TECHNICAL CHARACTERISTICS | |

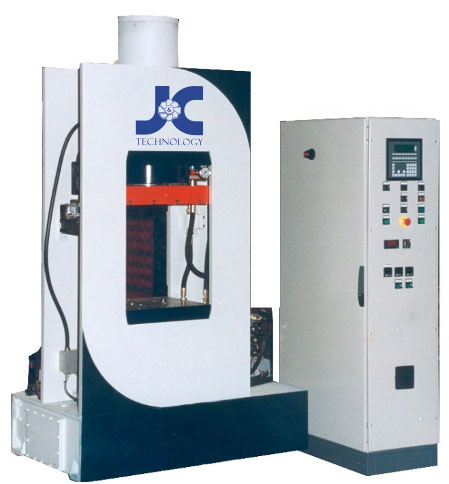

| Description | HPL 180 |
| Max. pressing force | 180 Ton |
| Number of cycles | To be defined following to the final product |
| Power Engine | 11 KW |
| Dies Heating | 10 KW |
| Max. ejection stroke | 90 mm |
| Max. ejection stroke | 8.000 Kg |
| Distance between the columns | 520 mm |
| Pressing cylinder diameter | 260 mm |
| Max. cylinder stroke | 175 mm |
| Hydraulic cylinder pressure | 120 bar |
| Water capacity for oil cooling | 10/15 lit-min |
| Useful height plate/ cross | 550 mm |
| Oil tank capacity | 200 lt |
| Net Weight | 2.500 Kg |
| Max. press height | 2.350 mm |
